What Is The Role of Nitrogen Generators in Annealing Furnaces?

In metal heat treatment processes, annealing furnaces serve as critical equipment where internal atmosphere control directly impacts product quality. Nitrogen generators produce high-purity nitrogen by separating air, providing annealing furnaces with a stable inert protective environment. This technological combination has become a vital solution for enhancing metal properties in modern industry. Jiaye Technology provides a detailed explanation here today.

The Core Role of Nitrogen in the Annealing Process

When metal materials are heated to recrystallization temperatures in annealing furnaces, their internal structures undergo reorganization. Exposure to oxygen-containing atmospheres at this stage causes rapid surface oxidation. Actual data from an automotive component manufacturer shows that annealing processes without nitrogen protection resulted in 15-20 micron thick oxide layers on steel surfaces. In contrast, samples protected with 99.9% pure nitrogen exhibited oxidation reduced to less than 3 microns. Nitrogen's inert properties not only isolate oxygen but also effectively prevent decarburization—the process where carbon escapes from the steel surface at high temperatures, significantly reducing material hardness and wear resistance.

Industrial Adaptability of Nitrogen Generation Technology

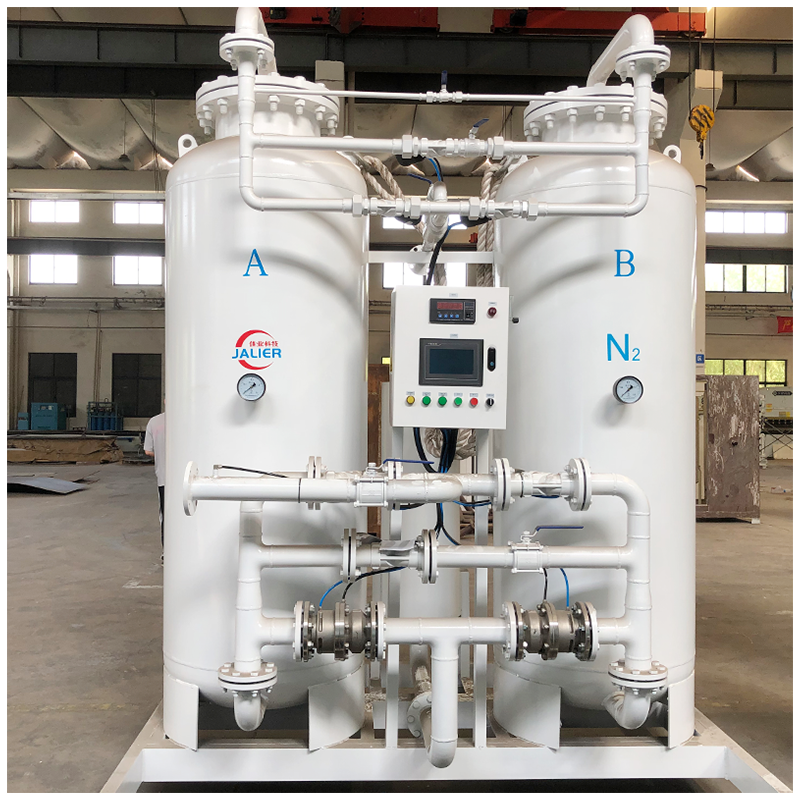

Modern nitrogen generators primarily employ two technologies: Pressure Swing Adsorption (PSA) and membrane separation. PSA nitrogen generators leverage the characteristic of carbon molecular sieves to preferentially adsorb oxygen molecules under pressurized conditions, achieving nitrogen purity exceeding 99.5%. Their hourly production capacity ranges from 5Nm³ to 3000Nm³, fully meeting the demands of annealing furnaces of varying scales. A case study from a bearing manufacturer demonstrates that switching from traditional liquid nitrogen supply to on-site PSA nitrogen generation reduced gas costs by 62% while eliminating purity degradation during transportation. Membrane separation technology is more suitable for small and medium-sized enterprises. It utilizes hollow fiber membranes to separate gases based on their differing permeation rates. While purity typically ranges from 95% to 99%, this method offers simple maintenance and rapid start-up/shutdown capabilities.

System Integration and Intelligent Control

Advanced annealing production lines now integrate nitrogen generators into intelligent control systems. Temperature sensors and gas analyzers operate in real-time coordination, automatically initiating nitrogen purging when furnace temperatures reach the critical 300°C threshold. Practice demonstrates that maintaining furnace oxygen levels below 50ppm yields optimal bright annealing results for stainless steel products. Monitoring data from a specialty steel plant shows that after adopting an intelligent system dynamically adjusting nitrogen flow rates, product defect rates dropped from 1.2% to 0.3%, while nitrogen consumption decreased by 18%.

Economic Benefits and Environmental Value

Compared to traditional venting annealing processes, nitrogen protection technology reduces metal loss rates by over 90%. Taking an annealing line processing 10,000 tons of steel annually as an example, this approach reduces iron oxide chip generation by approximately 150 tons per year, directly recovering over one million yuan in economic losses. In terms of environmental benefits, on-site nitrogen generation eliminates carbon emissions from liquid nitrogen transportation. Each medium-sized PSA nitrogen generator reduces greenhouse gas emissions by approximately 200 tons of carbon dioxide equivalent annually. A case study at an industrial park demonstrates that integrated nitrogen generation centers achieve 35% lower comprehensive energy consumption compared to decentralized gas supply models.

Breakthroughs in Specialized Applications

For heat treatment of reactive metals like titanium alloys, nitrogen generators must operate in conjunction with argon systems. Newly developed composite gas control technology automatically adjusts nitrogen-to-argon ratios based on process curves, ensuring treatment efficacy while controlling costs. After adopting this solution, an aerospace manufacturer achieved a 40% increase in fatigue life for titanium alloy forgings while reducing gas costs to one-third of pure argon processes. Additionally, certain copper annealing processes require trace hydrogen additions. Modern nitrogen generators now integrate hydrogen blending modules to precisely formulate multi-component protective gases.

‍

As heat treatment processes evolve toward greater precision, nitrogen generation technology faces new challenges. Current research focuses include: developing composite purification systems capable of simultaneously removing trace moisture and oxygen; leveraging IoT technology for intelligent cluster scheduling of multiple nitrogen generators; and exploring hybrid applications of nitrogen-methanol cracking gas mixtures. Experimental data from a multinational steel group indicates that employing pulsed nitrogen injection during annealing of specific alloy steels can enhance grain refinement by 15%. This demonstrates nitrogen's evolution from a passive protective gas to an active process medium that modifies material properties.
