Nitrogen Generators: Nitrogen Is A Critical Process Gas in Powder Metallurgy Production.

In powder metallurgy production, nitrogen serves as a critical process gas whose role spans multiple core stages—from raw material processing to final sintering and forming. It profoundly impacts product quality, production safety, and cost control. Today, Jiaye Purification explores the vital function of nitrogen generators in the powder metallurgy industry. Below is an analysis of nitrogen's specific roles and underlying technical principles:

I. Protective Applications During Metal Powder Preparation

1. Inert Barrier in Atomization Processes

During metal powder production via high-pressure gas or water atomization, nitrogen displaces oxygen in the reaction environment, maintaining oxygen levels below 50ppm (per chemical industry technical references). This effectively prevents oxidation of molten metal droplets at high temperatures. For iron-based powders, nitrogen protection reduces oxygen content from 0.8% to below 0.1%, significantly enhancing powder flowability and compaction formability.

2. Stable Medium fo Powder Classification and Storage

Nitroen forms a closed-loop circulation system in air-classification equipment, serving both as a transport medium and protective gas. Actual data from a renowned powder metallurgy enterprise shows that alloy powders stored with 99.999% high-purity nitrogen exhibited only 0.02% oxidation weight gain after six months, compared to 0.5% for unprotected samples.

II. Multifunctional Applications in Forming and Sintering

1. Lubrication Assistance During Compression Molding

Nitrogen creates a micro-positive pressure environment in precision mold injection systems. When used with zinc stearate lubricants, it reduces mold wall friction coefficients by approximately 30% and extends mold life by 2-3 times. An automotive parts manufacturer optimized nitrogen injection parameters, reducing gear blank density deviation from ±0.15 g/cm³ to ±0.05 g/cm³.

2. Dynamic Atmosphere Control in Sintering Furnaces

In pusher-type sintering furnaces, nitrogen serves three primary functions:

- Base carrier gas: Nitrogen (60-80% volume) dilutes hydrogen/decomposed ammonia to regulate explosive limits

- Carbon potential adjustment: Nitrogen flow controls CO/CO₂ ratio. A stainless steel sintering case study showed carbon content decreased by 0.03 wt% per 10 m³/h increase in nitrogen flow

- Heat transfer medium: Forced convection with nitrogen improves temperature uniformity from ±15°C to ±5°C

III. Innovative Applications in Special Processes

1. **Protective Degreasing in Powder Injection Molding (MIM)**

During catalytic degreasing, nitrogen forms an azeotrope with nitric acid vapor, boosting degreasing rates by 40% while preventing structural collapse. A medical device manufacturer employed two-stage nitrogen protection (5 L/min below 200°C, 15 L/min above 200°C), reducing defect rates in 316L stainless steel feedstock degreasing from 8% to 1.2%.

2. Densification Enhancement in Hot Isostatic Pressing (HIP)

Under 100MPa pressure, nitrogen permeates powder grain voids. Its thermal conductivity—1.5 times that of argon—accelerates temperature equilibrium. Data from turbine disk manufacturing shows nitrogen-medium HIP shortens cycle times by 20% compared to argon processes, achieving relative densities exceeding 99.9%.

IV. Balancing Safety and Cost Efficiency

1. Intrinsically Safe Design of Explosion-Proof Systems

During hydrogen-atmosphere sintering, nitrogen purging systems reduce oxygen content below 1% within 15 seconds, meeting NFPA 86 standards. An incident analysis report indicates that sintering furnaces equipped with nitrogen emergency systems reduce explosion probability to 0.001 incidents per million operating hours.

2. Cost Reduction Through Gas Recycling

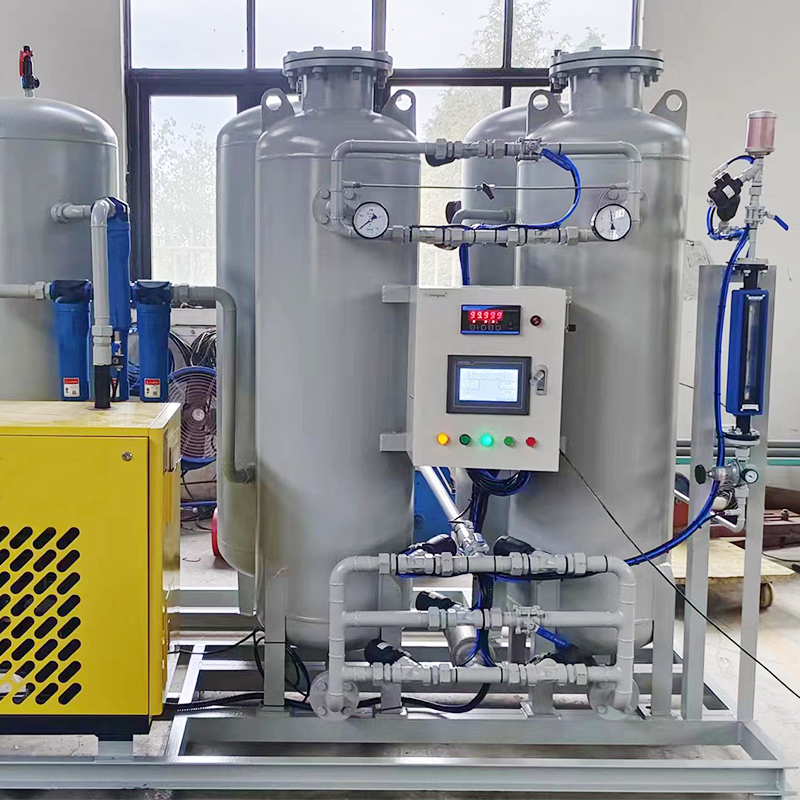

Modern nitrogen generators employ combined PSA (Pressure Swing Adsorption) and membrane separation technologies, reducing nitrogen consumption from 20m³/kg of product to 8m³/kg.

V. Technological Trends and Challenges

1. Integrated Application of Intelligent Control Systems

IoT-based nitrogen management systems are emerging, automatically adjusting nitrogen flow by monitoring in-furnace oxygen levels in real time (with ±0.1 ppm accuracy). A demonstration plant achieved a 37% reduction in nitrogen waste after implementation.

2. Stringent Nitrogen Purity Requirements for New Alloys

Titanium alloy powder metallurgy demands nitrogen dew points below -70°C, driving nitrogen generators to incorporate three-stage catalytic deoxidation units. While increasing equipment investment by 25%, this boosts product yield by 12 percentage points.

The powder metallurgy industry currently faces a tension between improving nitrogen utilization efficiency and meeting specialized process demands. Future breakthroughs may emerge through distributed nitrogen generation networks and dynamic gas purity adjustment technologies. Notably, nitrogen's expanding application in 3D printing's metal powder bed fusion process demonstrates potential to replace argon, potentially reshaping traditional gas usage paradigms in powder metallurgy.
